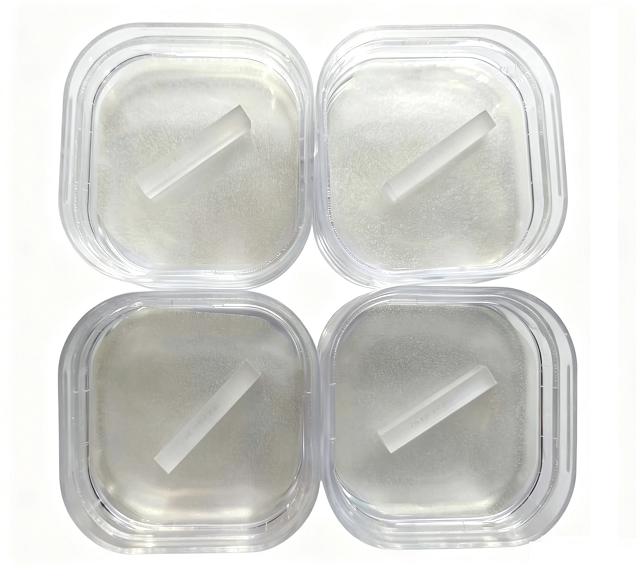

CeF3 crystal is a magneto-optical crystal product with excellent comprehensive performance. The magneto-optical properties of CeF3 crystal enable it to be used as a Faraday rotator used in the field of high-power lasers. It has the advantages of high density, good temperature stability, high detection efficiency and fast response speed, making it very suitable as a detection material for high-energy physics experimental devices, X-ray detectors, β-ray detectors and γ-ray detectors. At the same time, CeF3 is also a scintillation crystal, a new inorganic scintillator used in medical imaging and high-energy physics.
Specifications:
| Chemical formula | CeF3 |
| Density | 6.16g/cm3 |
| Melting point | 1430℃ |
| Refractive index | 1.62(@400nm) |
| Color | transparent(colourless) |
| Extinction ratio | >33dB |
| Moh's hardness | 5.0 |
| Thermal conductivity(24℃) | 2.19W/m·℃ (C direction) |
| Thermal expansivity | 1.45x10-5/℃ |
| Verdet constant (@632nm) | -125Rad/(T·m) |
| Verdet constant (@1064nm) | -40.7Rad/(T·m) |
| Transmission range | 300nm-2500nm |
| Available size | 5x5x5mm;10x10x10mm;20x20x20mm |
Stock sizes availablle:
Ф45x3mm
Ф5.5(+/-0.05)x28mm
Ф4.3(+0.05)x2(+0.05)mm
Ф5.5x28.4mm
Ф15(+0.1)x0.7mm
Ф15(+0.1)x0.5(+0.05/-0.1)mm
Ф15(+0.1)x0.5(+/-0.05)mm
Ф15(+0.1)x0.5(+0.05)mm
Ф10(-0.1)x7.5mm
(3.2x3.2x10)+0.2mm
(3.2x3.2x9)+0.2mm
(5x5x1)+0.05mm
Ф10(+0.1)x0.5(+0.05)mm
Ф10(-0.05)x0.5(+0.05)mm
(10x10x2)+0.1mm
10x10x10mm
5.2(+0.1)x5.2x25(+0.3)mm
2.3(+0.1)x4.3(+0.1)x16.6(+0.3)mm
Ф2.9(-0.05)x4(-0.1)mm
Ф10(+0.1)x0.5mm
Ф50(+0.1)x1.5mm
Ф5.5(-0.1)x5.4mm
4(+0.1)x4x10(-0.05)mm
Ф10(+0.1)x5mm
Ф12.7(-0.05)x2(+/-0.1)mm
