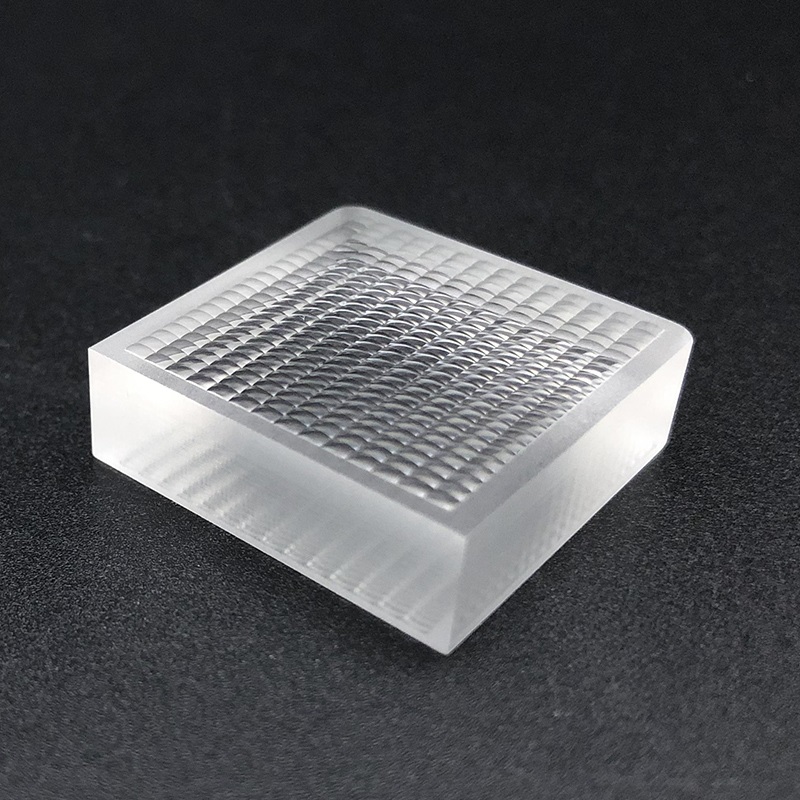

The compound eye lens array is a very useful optical element in the lighting system. The double-row compound eye lens array is used to achieve uniform lighting. The light beams emitted from each point on the light source intersect and overlap within the same field of view on the illumination spot, so a uniform light spot is obtained. Our single-sided compound eyes are made of quartz glass with a transmittance of up to 90%. The transmittance of the coating process is >98%. At the same time, we also provides customized services for other materials and sizes.

Features:

Quartz microstructure compound eye features:

High purity quartz

One-piece double-sided molding

Optical axis accurate alignment

Microstructure array

Void minimization

The micro-structure compound eye can be composed of compound eye units as small as 0.3 mm and invalid area width not exceeding 0.03 mm.

The laser light source is expanded and even, and the light spot is arranged into the rectangular light type commonly used in the projection system.

Application: microdisplay, projection, 3D printing, lithographic lighting system and other fields.

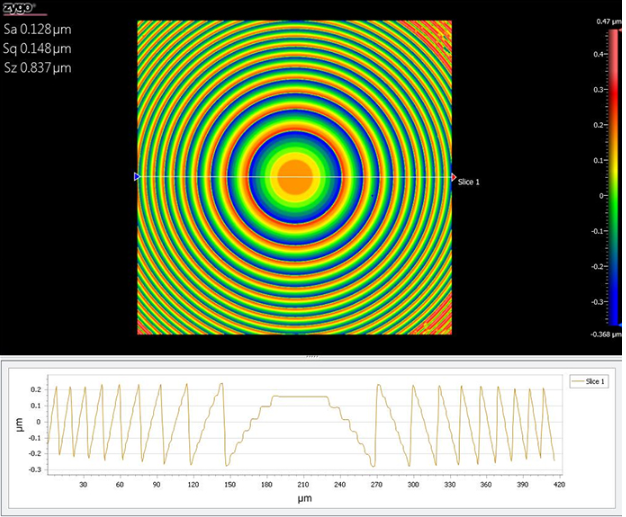

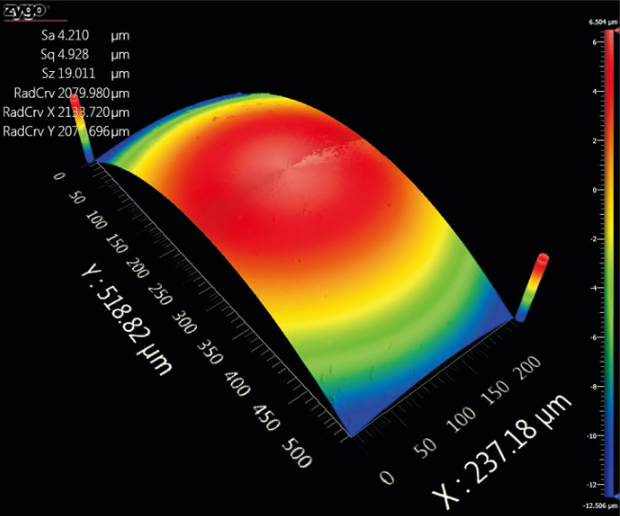

Facial structure of compound eye：
