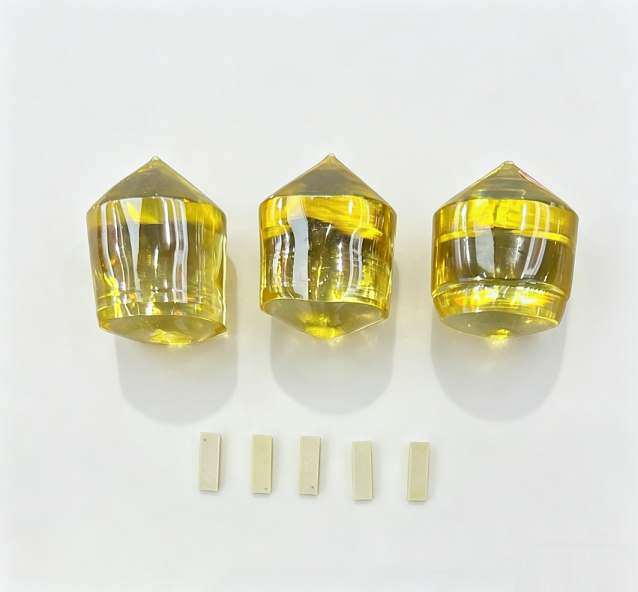

Nd:YVO4 crystals are usually used in lasers to generate the same wavelength radiation as Nd:YAG ( 1064 nm ). Other important emission wavelengths of this crystal are 914 and 1342 nm. These types of lasers usually are pumped with diodes, however they can be lamp pumped too. Compared with Nd:YAG, Nd:YVO4 has a much higher pump absorption coefficient with much broader wavelength range for pumping. Nd:YVO4 also has a shorter upper state lifetime which reduce effects of thermal losses.
Advantages:
Lower lasing threshold and higher slope efficiency
Low dependency on pumping wavelength and tend to single mode output
Large stimulated emission cross-section at lasing wavelength
High absorption over a wide pumping wavelength bandwidth
Optically uniaxial and large birefringence emit strongly-polarized laser
Specifications:
Nd Doping | 0.07% ~ 3% |
Orientation | A-cut/C-cut |
Wavefront Distortion | λ/6 per inch@632.8nm |
Dimension Tolerances | +/-0.1 mm |
Surface Quality | 10/5 Scratch/Dig MIL-O-1380A |
Parallelism | <10″ |
Perpendicularity | <5′ |
Clear Aperture | >90% |
Surface Flatness | λ/10@632.8 nm |
Chamfer | <0.1mm@45deg |
Barrel Finish | Fine grind |
Coating | AR/HR/PR Coating upon customer's request |
Damage Threshold | 750MW/CM2 at 1064nm, 10ns, 10Hz |
